4 Color Flexo Printing Machine — QI F950

Ceramic anilox roller printing with unwinding, printing, varnishing, IR drying and rewinding completed in one process.

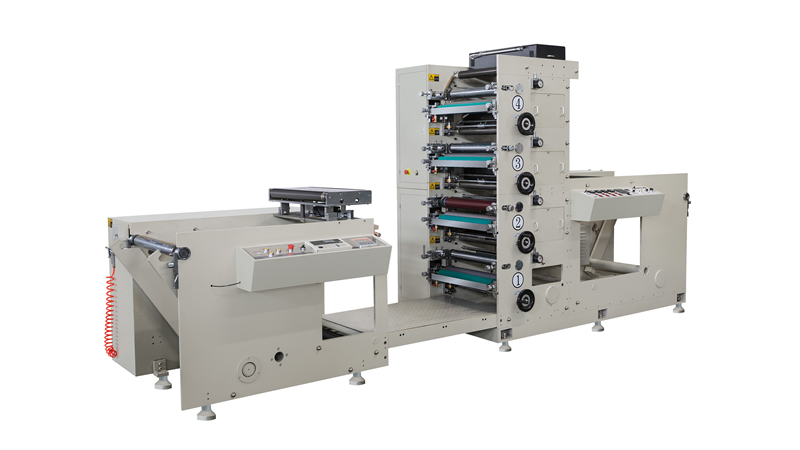

4 Color Flexo Printing Machine QI F950

Machine Description

The QI F950 is a 4-colour flexo printing machine that completes unwinding, printing, varnishing, IR drying and rewinding in a single pass, built around ceramic anilox rollers for consistent ink spread.

Characteristics & Key Features

  • Adopts ceramic anilox rollers to spread ink.
  • Unwinding and rewinding controlled by magnetism power brake clutch and automatic tension controller.
  • Each printing unit adopts 360° for registration with one IR drier.
  • The rubber roller can break away automatically while parking and at low running speed, avoiding the ink from drying out.
  • Main motor adopts imported stepless regulation of frequency conversion.
  • One mounting device; one anilox roller for each group (specification optional).
  • One unwinding tension controller and one rewinding tension controller.
  • Hydraulic loading and hydraulic unloading.

Specifications

ModelQI F950
Printing Speed60 – 90 m/min
Power Supply380V, 50Hz, 3 Phases
Power22 kW
Printing Colour4 colours
Max Web Width950 mm
Max Printing Width930 mm
Max Unwinding Diameter1400 mm
Max Rewinding Diameter1200 mm
Printing Girth180 – 420 mm
Precision of Chromatography±0.15 mm
Machine WeightAbout 4200 kg
