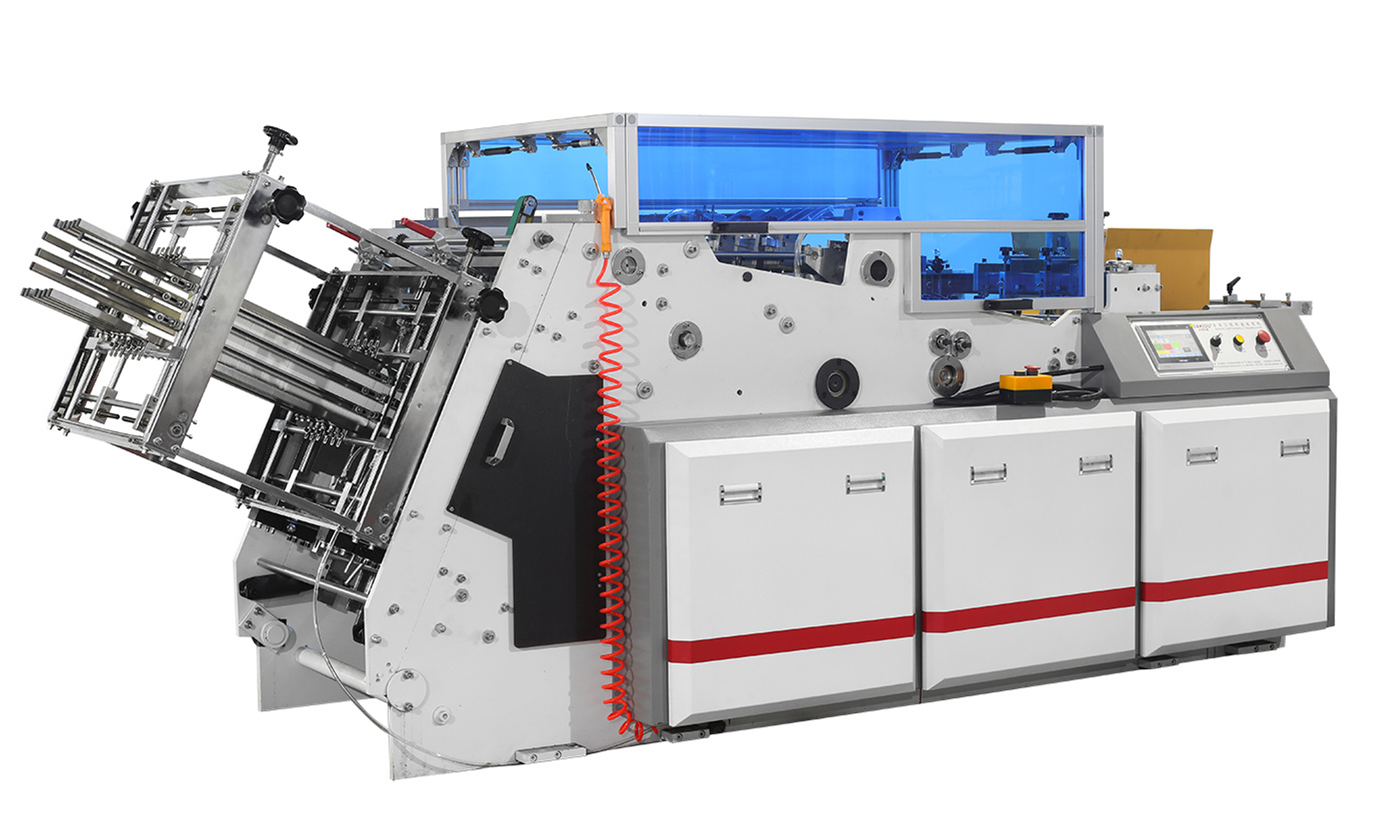

The AE-CE800S paper carton erecting machine is an ideal choice to produce hamburger boxes, chips boxes, takeaway boxes and similar cartons. It adopts a micro-computer, PLC, servo feeding, alternating current frequency converter, vacuum-sucking, auto gluing, automatic paper tape counting, and chain drive.
All main parts and the electric control system use well-known brands to guarantee steady working, precise positioning, smooth running, safety and reliable operation.
| Type | AE-CE800S |
| Production Capacity | 80 – 200 pcs/min |
| Suitable Material | 200-600 gsm card paper, PE coated paper, kraft paper, corrugated paper (up to 1.5 mm) |
| Paper Open Length | Length: 100-450 mm | Degree: 5° to 40° |
| Paper Open Width | Width: 100-600 mm | Height: H15-200 mm |
| Total Power | 5 KW |
| Weight | 2.4 T |
| Dimension | 3600 x 1400 x 1700 mm |
| Power Source | 380V, 50Hz |
Talk to our technical team for factory layout, installation and pricing details.
Talk to our application engineers about the right machinery for your production line.
